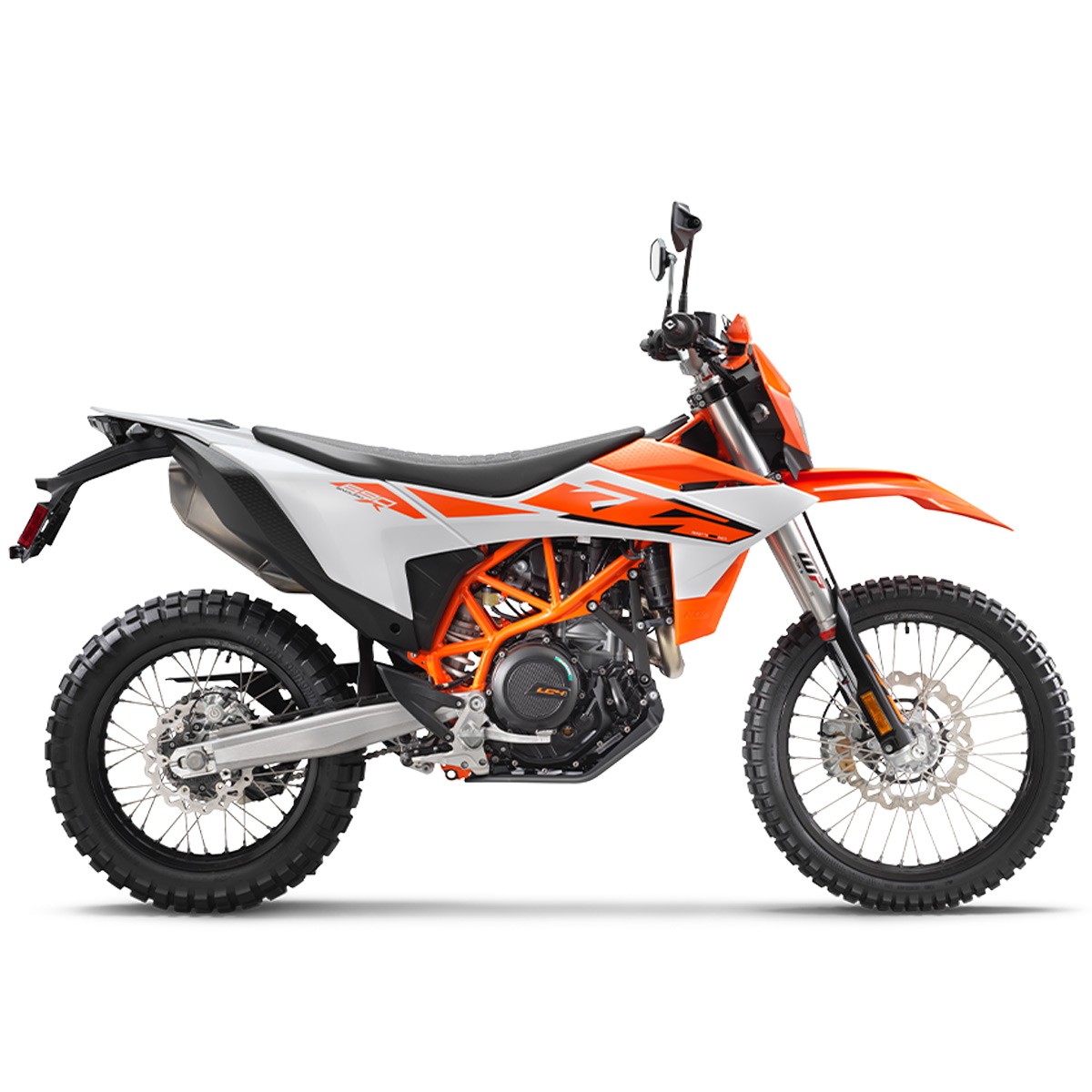

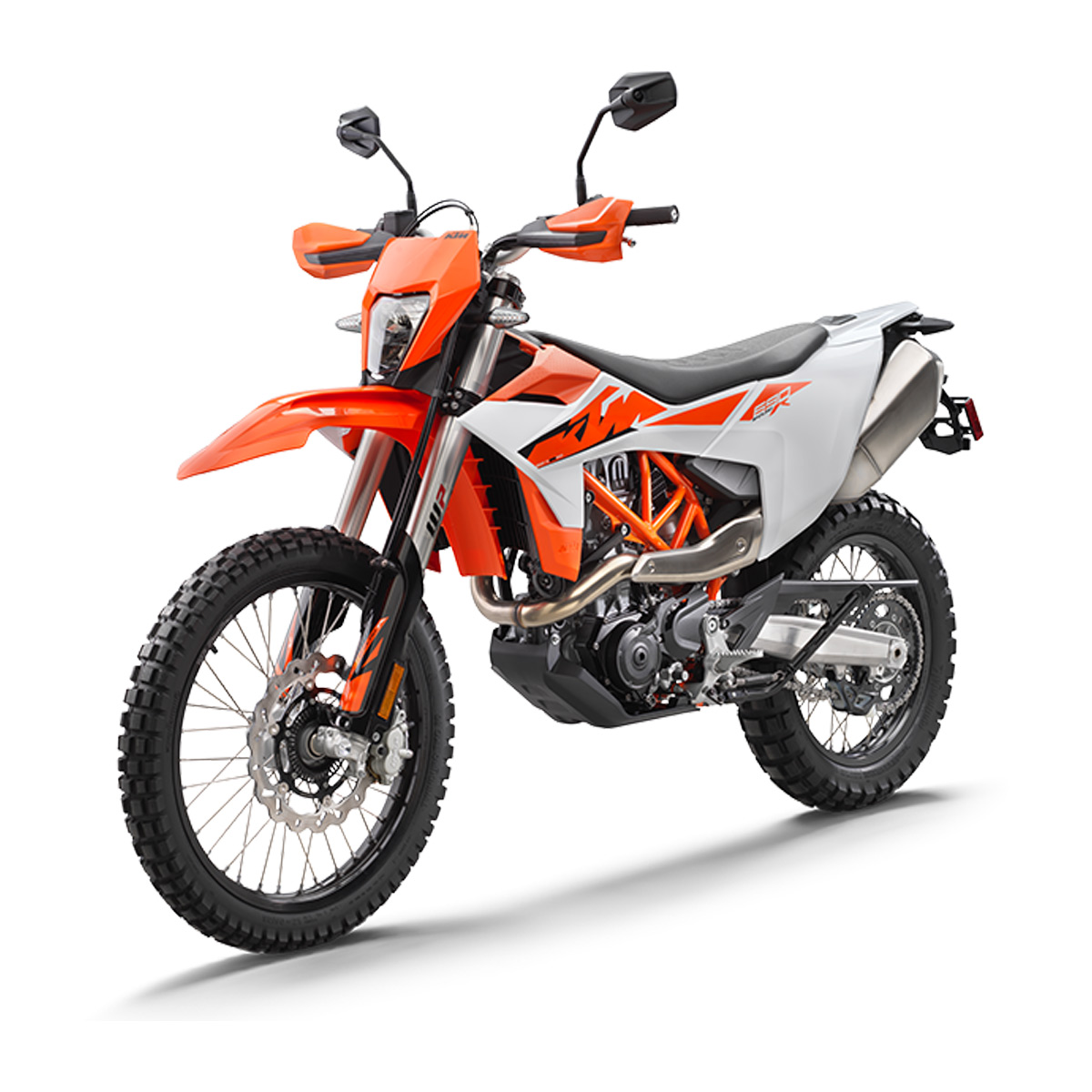

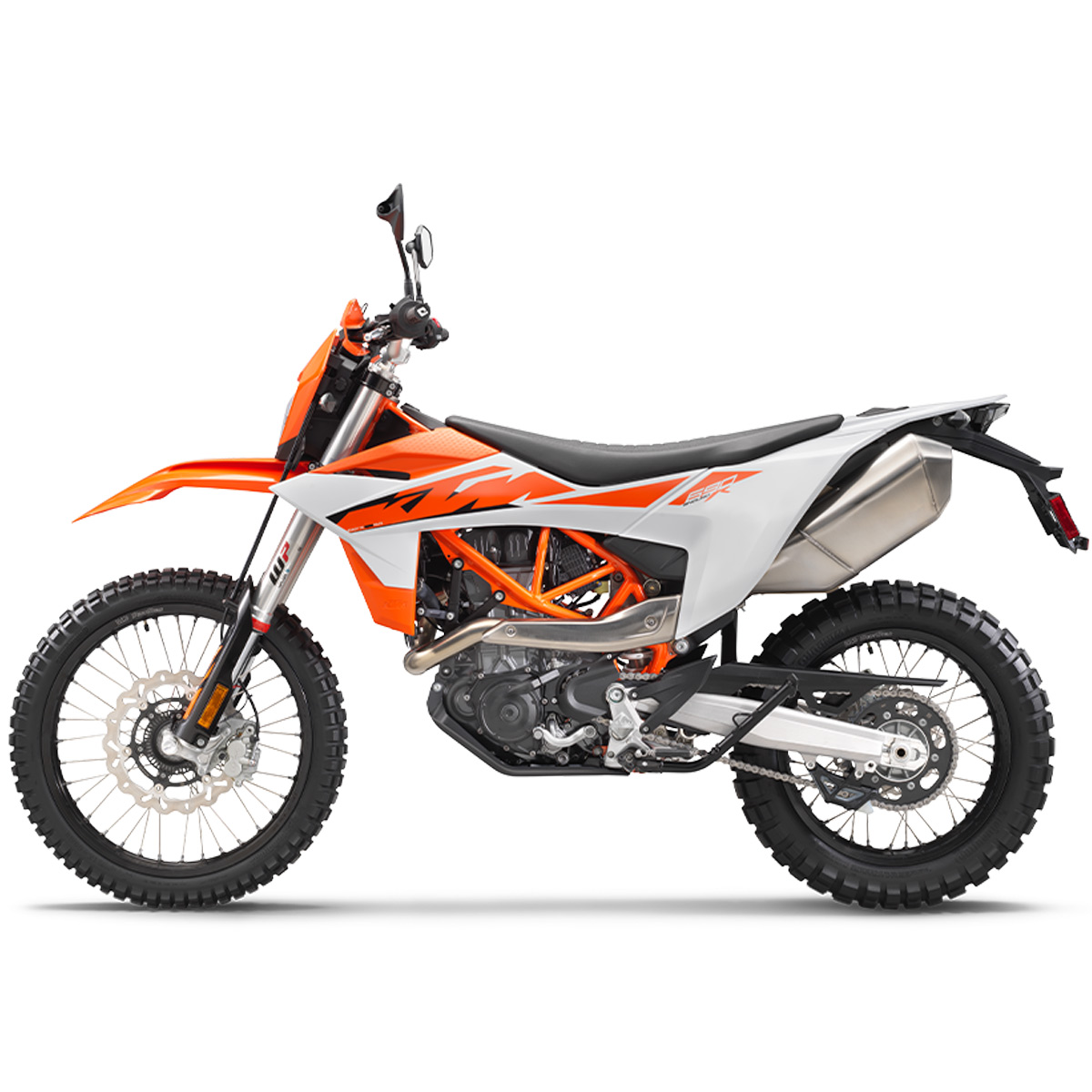

2026 KTM 690 Enduro R

Imagine this: Your KTM 690 ENDURO R grumbles with the rising revs as suburbia slowly disappears behind you.

Brands:

2026 KTM 690 Enduro R

Upfront, a bright LED beam lights the way into the early morning mist as you hurtle toward the next dirt track. The next moment, you’re blasting off into the wilderness, transitioning from asphalt to grit effortlessly, without breaking a sweat. That’s the allure of the KTM 690 ENDURO R – versatility beyond boundaries.

Technical Details

  • Design1-cylinder, 4-stroke engine
  • Displacement692.7 cm³
  • Power79 PS
  • Torque73 Nm
  • Transmission6-speed



Engine

Design
1-cylinder, 4-stroke engine
Displacement
692.7 cm³
Power
79 PS
Torque
73 Nm
Transmission
6-speed
CO2 emissions
99 g/km
Cooling
Liquid cooled
Engine cylinder
Single cylinder
EMS
Keihin EMS with RBW, twin ignition
Engine oil
Motorex Power Synth SAE 10W-50
Engine stroke
4-Stroke
Silencer
Stainless steel primary and secondary silencer

Chassis

Brake disc diameters (front/rear)
300 / 240 mm
Front brake disc diameter
300 mm
Rear brake disc diameter
240 mm
Front brake
Disc brake
Rear brake
Disc brake
Chain
520 X-Ring
Frame design
Chromium-Molybdenum steel trellis frame, powder coated
Steering head angle
62.3 °
Rear subframe design
Self-supporting plastic tank
Trail
120 mm
Wheelbase
1506 mm

Suspension

Front suspension
WP XPLOR-USD, Ø 48 mm
Rear suspension
WP XPLOR with Pro-Lever linkage
Suspension travel (front)
265 mm
Suspension travel (rear)
250 mm
Front suspension adjustment
Compression and rebound adjustable
Rear suspension setting
Compression (high and low speed), rebound and preload adjustment

Dimensions

Seat height
935 mm
Wheelbase
1506 ± 15 mm
Tank capacity (approx.)
13.3 l
Ground clearance
265 mm
Weight (without fuel)
152 kg
Weight fully fueled
162 kg
Wheelbase tolerance
15 mm
Front wheel diameter
21 “
Rear wheel diameter
18 “
Front wheel width
1.85 “
Rear wheel width
2.5 “
Wheels
1.85 x 21″; 2.5 x 18″
